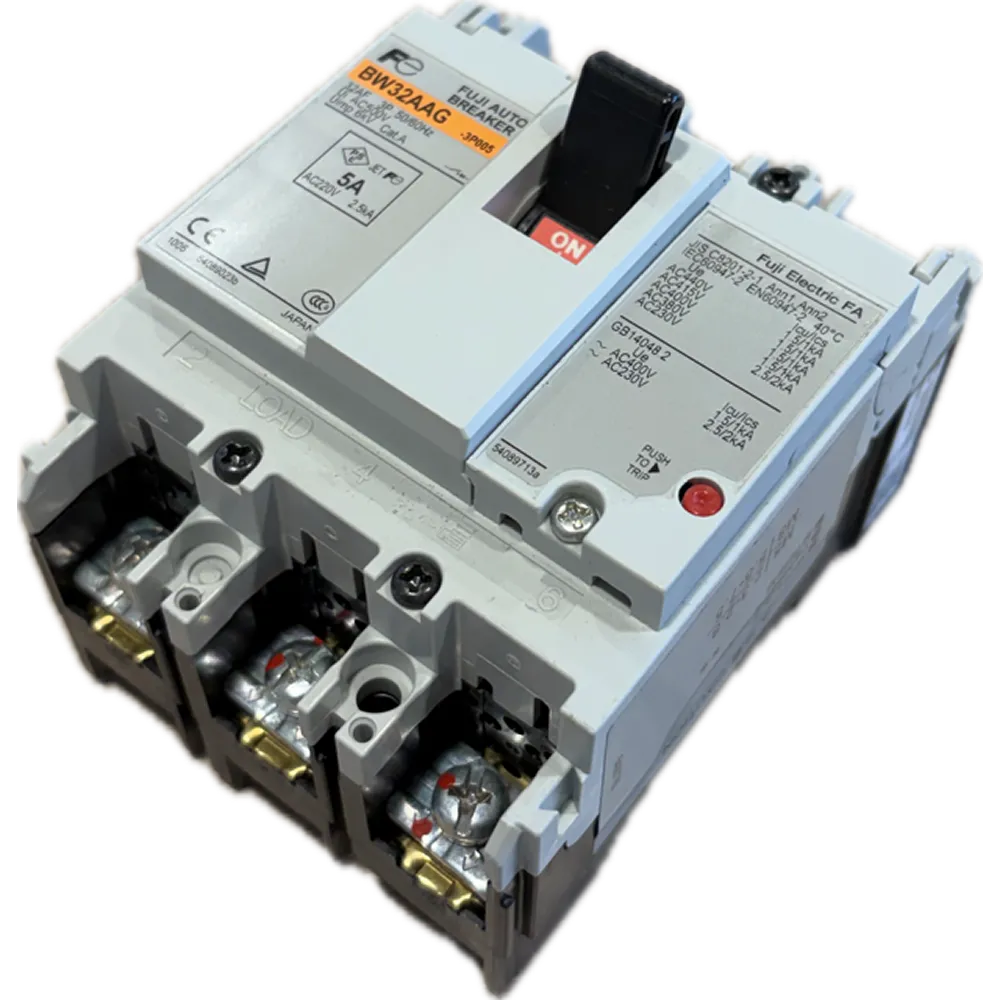

This Fuji Electric circuit protector protects electrical circuits against overload and short circuit in industrial control systems. Ideal for applications where reliable circuit protection is essential, such as control cabinets and packaging machines.
Technical Specifications
Brand | Fuji Electric |
Model | BW32AAG |
Condition | Used |
Frame size | 32AF |
Number of poles | 3 |
Frequency | 50/60 Hz |
Insulation voltage (Ui) | AC500V |
Impulse withstand voltage (Uimp) | 6kV, Cat. A |
Rated current | 5A |
Breaking capacity | 2,5kA @ AC220V |
