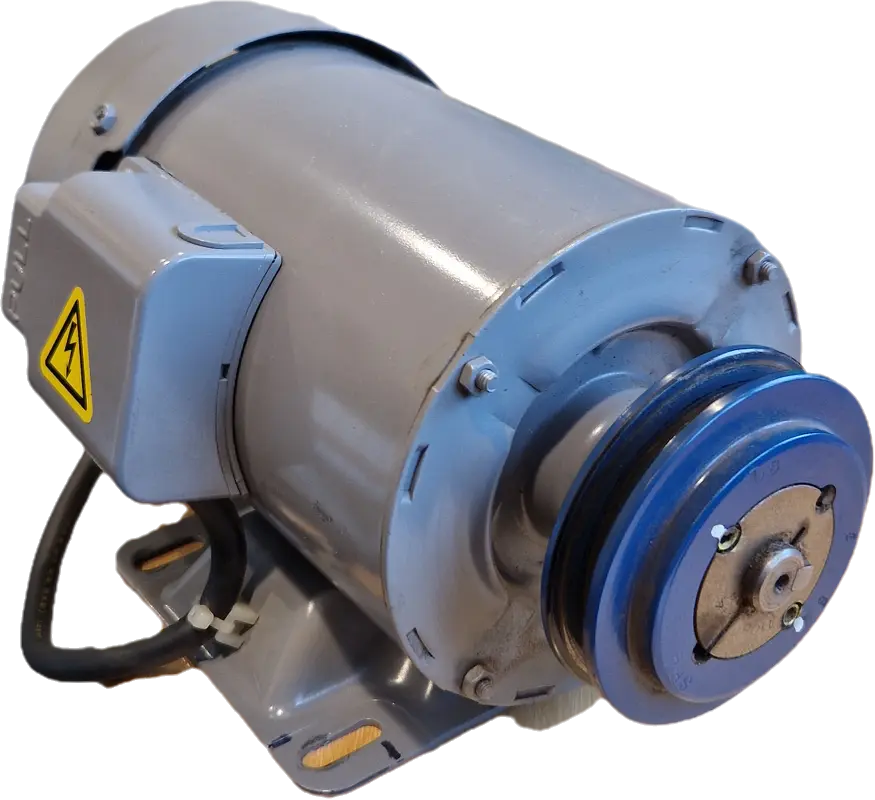

Fuji Electric MLH8075M 3-Phase Induction motor
The Fuji Electric MLH8075M is a reliable 3-phase induction motor rated at 400W with 4 poles. Designed for continuous operation (CONT), it offers IP40 protection with insulation class E. With a 71M frame size and 6202ZZ bearings, this motor is built for durable industrial applications, compliant with the JIS C 4210 standard.

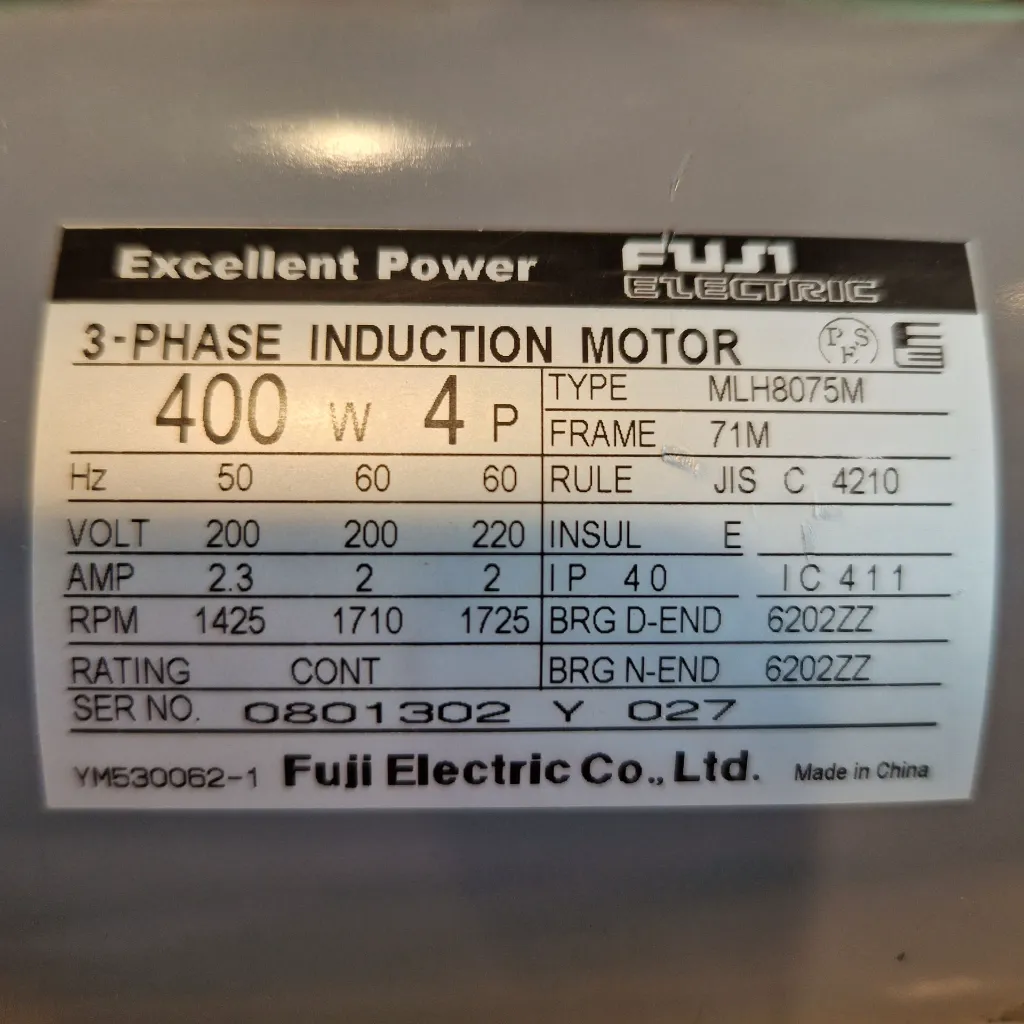

Technical specifications
Brand | Fuji Electric |
Model | MLH8075M |
Condition | Used |
Power | 400 W |
Number of poles | 4P |
Operating conditions | Frequency / Voltage / Current / Speed |
Condition 1 | 50Hz / 200V / 2,3A / 1425 RPM |
Condition 2 | 60Hz / 200V / 2A / 1710 RPM |
Condition 3 | 60Hz / 220V / 2A / 1725RPM |
Protection class | IP40 |
Frame | 71M (axle height 71 mm) |
Operating mode | Continuous (CONT) |
Internal Reference:
TN01952
