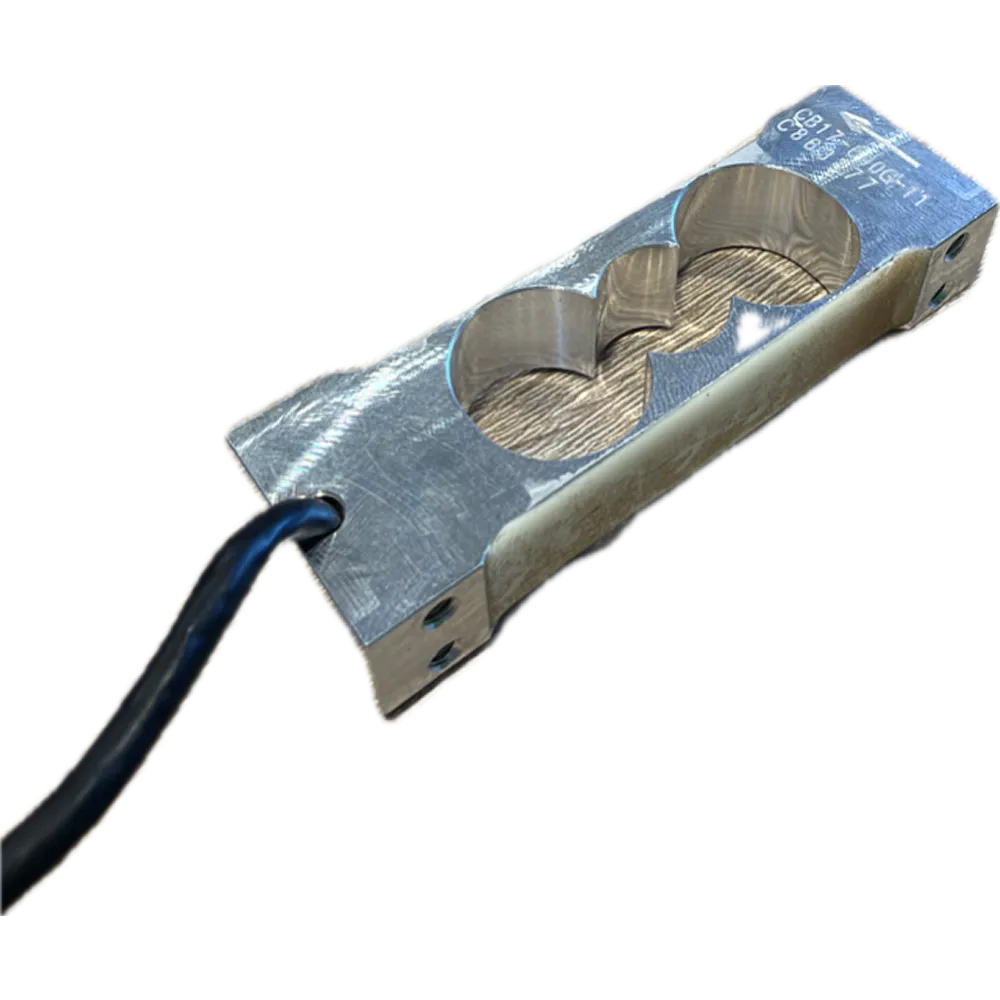

The CB17-600G-11 is a compact load cell for electronic scales and dosing or weighing systems. It accurately measures weights up to 600 grams. The aluminum housing is lightweight and sturdy, and the sensor is easy to mount using two screw holes.
Technical specifications
Model | CB17-600G-11 |
Rated capacity | 600g |
Supply voltage | 5 tot 10 V DC |
Input impedance | ca. 1000 Ω |
Overload protection | 150% of capacity |
Operating temperature | −10 tot +40 °C |
Connection | 4 wires (red: +, black: −, green: signal +, white: signal −) |
